My External Units

My External Units

IBM 3431-001

650MB 5.25" Magneto-Optical Drive

1 x 5.25" Full Height Device
1 x 50-pin Centronics "Single Port" SCSI
(requires special cable)

1 x Power LED

Power Supply with manual switch and fan

Oval badge on front
"IBM" Logo and "3431-001"
in silver letters on medium-grey background

IBM 3440-001

4mm DAT Streaming Tape Drive

1 x 5.25" Device
1 x 50-pin Centronics "Single Port" SCSI
(requires special cable)

1 x Power LED

Power Supply with manual switch and fan

Oval badge on front
"IBM" Logo and "3440-001"
in silver letters on medium-grey background

IBM 3510-AV0

Universal Enclosure

1 x 5.25" Device
2 x RCA audio jacks at the rear
2 x 50-pin Centronics SCSI

1 x Power LED
1 x Case Lock (Key missing ...)

Power Supply with manual switch and fan

This unit contains the Caddy-loaded
IBM CD-ROM II

Oval badge on top
"IBM" Logo and "3510-AV0"
in silver letters on medium-grey background

Have some more of these for various purposes.

IBM 3519-R01

Hot Swap Rack Enclosure

3 x Non swapable 5.25" Device HH
6 x Hot Swap devices 3.5" Slimline

1 x 68-pin Sub-D Wide SCSI Connector

1 x integrated SCSI Repeater card

1 x Power LED
1 x Fan / Alert LED
1 x Alert Reset Button
1 x Case Lock
1 x Alert Beeper

Power Supply with electronic switch and fans

Black 19" rack-mount compartment for
the IBM Netfinity Series.

Blue "IBM" Logo and white "3519"
on the front cover door (not shown here)

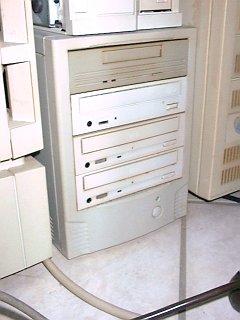

4-Device External SCSI Enclosure

Universal SCSI Enclosure
(Attached to "Atlas")

4 x Non swapable 5.25" Device HH

2 x 50-pin Centronics SCSI Connectors

1 x Power LED

Power Supply with manual switch,
fans and AC-Passthrough connector.

Currently equipped with
1 x Archive Python 2-4 GB 4mm DAT Tape
1 x NEC CD-ROM 4x Tray loaded
2 x TEAC CD-532SK CD-ROMs 32x Tray loaded

4-Device External SCSI Enclosure

Universal SCSI Enclosure
(Attached to "Provence")

4 x Non swapable 5.25" Device HH

2 x 50-pin Centronics SCSI Connectors

1 x Power LED

Power Supply with manual switch,
fans and AC-Passthrough connector.

Currently equipped with
1 x Sony Spressa CD-ROM Writer 2x
1 x PLextor 12TSi CD-ROM 12x Tray loaded
1 x Exabyte EXB-8200 8mm 2.3GB Tape
1 x IBM DCAS-3210 Ultra-SCSI HD (in the bottom)

Exabyte EXB-8205 8mm Tape Unit
8mm Backup Tape Unit (Attached to "Atlas") 1 x Power LED 1 x SCSI Bus Activity LED 1 x Tape Motion LED 1 x Eject Button Power Supply with manual switch, fuse and fans at the rear Fan with air-filter

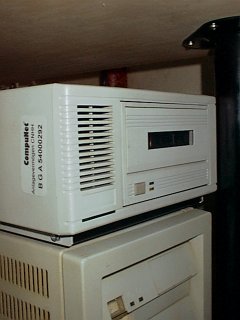

Exabyte EXB-8505 8mm Tape Unit

8mm Backup Tape Unit
(Attached to "AOL-Gate")

1 x Power LED
1 x SCSI Bus Activity LED
1 x Tape Motion LED

1 x Blue Eject Button

Power Supply with manual switch,
AC-Passthrough, fuse and fan at
the rear.

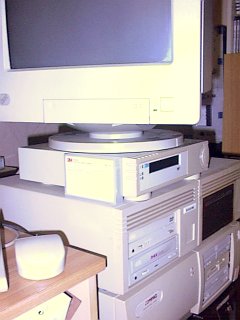

Below are the two 5.25 / Full height
Expansion enclosures attached to
"Fireplace" that contain 2 x CD-ROM
and a 2GB Fujitsu Full-Height drive.
