Peter's ADF Collection (4/5)
Last Update: 23.01.2003

If it is not listed here - I don't have it !
But feel free to send me missing ADFs, they are always welcome !
Some files may have foreign (i.e. German) text !


Adapter-IDs from 0000 - 5FFF
Adapter-IDs from 6000 - 67FF
Adapter-IDs from 6800 - 6FFF
Adapter-IDs from 7000 - 7FFF
Adapter-IDs from 8000 - FFFF

The -Symbol indicates: there is a picture available.
Just click on it to see the image.
Attention: The images are on a different site !



  • @7000.ADF - AST ADVANTAGE/2
  • @7001.ADF - AST Advantage/2 With Dual Serial Port
  • @7002.ADF - AST Advantage/2 With Ser & Par Port
    AST Advantage/2 With Ser & Par Port

  • @7003.ADF - AST RampagePlus/MC 386 Adapter
  • C7003.ADF - Init file for @7003.ADF

  • @7004.ADF - AST RampagePlus/MC 386 Adapter w 2x Serial Port
  • C7004.ADF - Init file for @7004.ADF

  • @7005.ADF - AST RampagePlus/MC 386 Adapter w S+P Port
  • C7005.ADF - Init file for @7005.ADF

  • @7007.ADF - Hyperam MC 32/16
    Hyperam MC 32/16

  • @7010.ADF - Tecmar MicroRAM 386 Multifunction Board
  • C7010.ADF - Init file for @7010.ADF
  • C7010.ADF - Alternative init file / rename to C7010.ADF
    The same board from other brands use these ADFs


  • @7011.ADF - Alternative for 2 below - no init file reqd.
  • @7011.ADF - Tecmar MicroRAM AD Multifunction Board
    alternative / later version
  • @7011.ADF - Tecmar MicroRAM Multifunction Board
  • C7011.ADF - Init file for @7011.ADF
  • I7011.ADF - Init file for @7011.ADF
    The same board from other brands use these ADFs


  • @7012.ADF - Ungermann + Bass Net/One NIUps LAN Ad.
  • @7012.ADF - Net/One NIUps LAN Adapter (alt. version)

  • @7016.ADF - Boca Research Model 50/60 Memory Exp. Board
    Boca Research Model 50/60 Memory Exp. Board

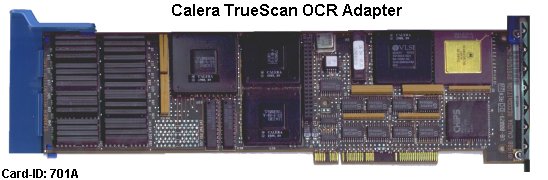

  • @701A.ADF - Calera TrueScan PS/2 MCA
    Calera TrueScan PS/2 MCA

  • @7020.ADF - Cumulus 2 Meg Exp/Ext Memory Multifunct. Ad.
  • @7021.ADF - Cumulus 4 Meg Exp/Ext Memory Multifunct. Ad.
  • @7022.ADF - Cumulus 8 Meg Exp/Ext Memory Multifunct. Ad.

  • @7024.ADF - QuadMEG PS8 Extd Memory Multifunction Ad.
  • I7024.ADF - Init file for @7024.ADF

  • @7025.ADF - QuadMEG PS8 Extd Memory Multifunction Ad.
  • @7026.ADF - Cumulus 2400 Baud Internal Modem
  • @7028.ADF - Stallion Technologies EASYREACH Host Adapter

  • @7038.ADF - MICRON Beyond 70/80 Memory Expansion Ad.
  • C7038.ADF - Init file for @7038.ADF

  • @7046.ADF - Alloy IMP8/PS Controller
  • @7047.ADF - Alloy IMP2/PS Controller
  • @7048.ADF - Excellogic Micromem Board

  • @7049.ADF - MICRON Beyond 50/60 Memory board
  • @7049.ADF - PIICEON Memory board w/ Rom
  • @7049.ADF - RYBS Memory board w/ Rom
    same cards - different brands. Rename to @7049.ADF


  • @704A.ADF - CPI 2400 Baud Modem Board
    CPI 2400 Baud Modem Board

  • @704E.ADF - IBM Video Capture Adapter (NTSC)
    IBM Video Capture Adapter (NTSC)

  • @704F.ADF - NCR MPCA/MC Adapter
  • @7050.ADF - AST RampagePlus/MC
  • @7051.ADF - AST RampagePlus/MC With I/O Pak/MC-S Option
  • @7052.ADF - AST RampagePlus/MC With I/O Pak/MC-SP Option
  • @7055.ADF - KF9100/9200 Kofax Document Processor
  • @7064.ADF - AW Computer Systems - RCP Adapter

  • @706D.ADF - AOX MicroMASTER 486/386 ADF v1.4
  • I706D.ADF - Init file for @706D.ADF

  • @706E.ADF - AOX MicroMASTER 4386 ADF v1.04

  • @706F.ADF - AOX MicroMASTER 386 ADF v1.1
  • @706F.ADF - AOX MicroMASTER 386 ADF v1.2
    newer version - rename to @706F.ADF

    AOX MicroMASTER 386

  • @7071.ADF - Integra I Fault Tolerant Disk System

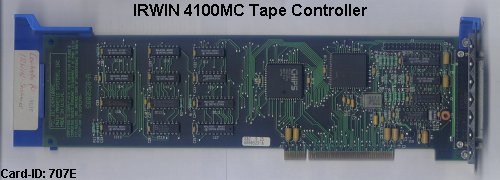

  • @707E.ADF - Irwin 4100MC Controller
    Irwin 4100MC Controller

  • @7081.ADF - AST Advantage/2 -386 Adapter (+2 Ser.)
  • @7082.ADF - AST Advantage/2 -386 Adapter (+1S / +1P)
  • @7083.ADF - AST Advantage/2 -386 Adapter (only Mem.)
    AST Advantage/2 -386 Adapter

  • @708D.ADF - RT1000-MC SCSI Host Bus Adapter Rev. 3.20
  • @708D.ADF - RT1000-MC SCSI Host Bus Adapter Rev 3.30
    Later Version. Rename to @708D.ADF


  • @708E.ADF - Kingston KTM-8000/286 Expansion Memory Ad.

  • @708F.ADF - Kingston KTM-8000/386 Memory Expansion Ad.
  • C708F.ADF - Init file for @708F.ADF

  • @7090.ADF - AST-5251/11A Enhanced Adapter - normal opt.
  • @7090.ADF - AST-5251/11A Enhanced Adapter (16K pagesize)
  • @7090.ADF - AST-5251/11A Enhanced Adapter (32K pagesize)
  • @7090.ADF - AST-5251/11A Enhanced Adapter (64K pagesize)

  • @7091.ADF - AST-3270/CoaxIIA Adapter
  • @7092.ADF - AST-CC432/A Adapter

  • @70B0.ADF - Intel Above Board MC32
  • C70B0.ADF - Init file for @70B0.ADF
    Option Disk directly from Intel (required !)


  • @70B6.ADF - Nokia Data System Adapter Board 8859
  • @70C0.ADF - Zenith Z-LANCard PS/2 BroadBand Network Ad.
  • @70C4.ADF - EXCALIBUR EXC-1553PS2/E CARD Ver. B
  • @70CE.ADF - IBM Video Capture Adapter/A with PAL

  • @70D0.ADF - Kingston KTM-16000/386 Memory Expansion Ad.
  • C70D0.ADF - Init file for @70D0.ADF
    Kingston KTM-16000/386 - Older

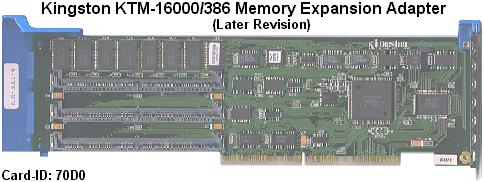

    Kingston KTM-16000/386 - Later (4MB soldered)

  • @70D1.ADF - Intel Above Board MC

  • @70D4.ADF - KINGSTON KTM-609/16 Memory Expansion Adapter
  • C70D4.ADF - Init file for @70D4.ADF
    KINGSTON KTM-609/16 Memory

  • @70D7.ADF - AdLib Music Synthesizer Card

  • @70D8.ADF - Xtend/MC-16 Micro Channel Memory Exp. Board
  • C70D8.ADF - Init file for @70D8.ADF - required !

  • @70DC.ADF - MC-16A Memory Card
  • @70DC.ADF - Piiceon SR16MCA Memory
    same card - different brand. Rename to @70DC.ADF
  • C70DC.ADF - Init file for @70DC.ADF - required !

  • @70DE.ADF - COMPEX INC. PS/2 ENET16-MC/P Microchannel Ad.
  • @70DF.ADF - EXCALIBUR EXC-1553MCBA CARD Rev. B
  • @7113.ADF - Stallion Technologies EasyConnection 8/64

  • @7119.ADF - Simple Technology Inc. 2-16 MB Mem. Exp.
  • C7119.ADF - Init file for @7119.ADF

  • @7125.ADF - Micro Channel PIRA
  • @7151.ADF - NE/2-32 Lan Adapter
  • @7152.ADF - Novell Disk Coprocessor Board/2

  • @7154.ADF - NetWare NE/2 NIC
    older version of File
  • @7154.ADF - C-NET 650E/2 Network Adapter
    same card - different brand. Rename to @7154.ADF

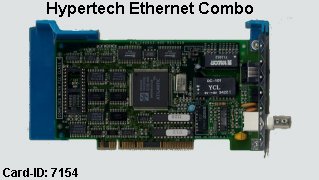

  • @7154.ADF - Hypertec HyperEnet MCA Combo
    same card - different brand. Rename to @7154.ADF

    Hypertech Ethernet Combo
    Novell Netware NIC (BNC + AUI)

  • @7188.ADF - QIC-02 Tape Adapter
    sold under several brands

    QIC-02 Tape Adapter

  • @71BF.ADF - CUMULUS CuRAM-MC32 MEMORY ADAPTER

  • @71D0.ADF - Kingston 64MB Memory Expansion Adapter
  • C71D0.ADF - Init file for @71D0.ADF
    Kingston 64MB Memory

  • @71D4.ADF - Kingston Technology DataCard 32
  • C71D4.ADF - Init file for @71D4.ADF

  • @7200.ADF - Gateway Microsystems SCC 2 Comms. Ad.
  • @7283.ADF - Bit 3 MCA Bus Adapter
  • @72F3.ADF - Hyperam MC 32/16 SIMM-MF
  • @72F6.ADF - Hypertec HYPERPORT II
  • @7321.ADF - The Pink Board
  • @7322.ADF - The Super Pink Board
  • @7401.ADF - QIC80 Tape Drive Controller
    several brands
  • @7411.ADF - Quadboard PS/Q Multifunction Ad. - pri. ID
  • I7411.ADF - Init file for @7411.ADF

  • @7422.ADF - Quadboard PS/Q Multifunction Ad. - sec. ID
  • I7422.ADF - Init file for @7422.ADF

  • @7430.ADF - XTEND 32MC Memory Exp. Board
  • C7430.ADF - Init file for @7430.ADF
    XTEND 32MC Memory

  • @7491.ADF - Tecmar MicroRAM SC Extended Memory Adapter
  • C7491.ADF - Init file for @7491.ADF
    Tecmar MicroRAM

  • @7520.ADF - ALR Micro Channel AT Imbedded Adapter
  • @7561.ADF - Alert Technology Serial Adaptor
  • @75FF.ADF - Trantor PS/2 SCSI Host Adapter
    Trantor PS/2 SCSI Host Adapter

  • @76DA.ADF - QUADMEG PS/Q Mem.Ad. vR1 .. ENH-MODE - pri.
  • I76DA.ADF - Init file for @76DA.ADF

  • @76DE.ADF - QUADMEG PS/Q Mem.Ad. vR1 .. ENH-MODE - sec.
  • I76DE.ADF - Init file for @76DE.ADF

  • @777D.ADF - Elite 16/2-386 Memory Expansion Adapter
  • @777F.ADF - Elite 16/2 Memory Expansion Board

  • @7788.ADF - Intel Above Board 2 Plus
  • I7788.ADF - Init file for @7788.ADF
  • I7788.MST - additional file (??)
    Intel Above Board 2 Plus

  • @77DF.ADF - RAMBANK-II Memory Expansion Adapter
  • @77FB.ADF - Everex 4 Megabyte Memory Board EV-136
  • @7800.ADF - ACF REINSA RED 8514A, GRAPHICS ACCELERATOR
  • @781C.ADF - C.O.S MCLW VER 4
  • @781E.ADF - TELES.S0/MC-Card

  • @7878.ADF - PIICEON SR32BMCI 32 Bit Memory/IO Card
  • C7878.ADF - Init file for @7878.ADF

  • @787B.ADF - 800E/2 NIC
  • @787C.ADF - 800E/2 NIC

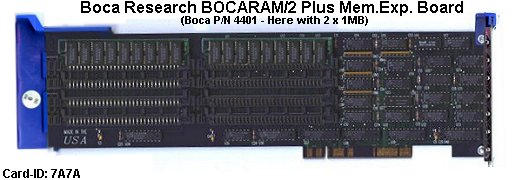

  • @7A7A.ADF - Boca Research BOCARAM/2 PLUS Memory Exp.
    BOCARAM/2 PLUS Memory

  • @7B7F.ADF - PIICEON Inc. SR1632 Memory Card
    OEM from Orchid
  • @7CEE.ADF - Capital Equipment Corp. OS/RAM32 Memory Ad.

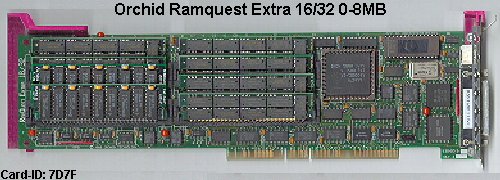

  • @7D7F.ADF - ORCHID Ramquest Extra 16/32 V1.1
    ORCHID Ramquest Extra 16/32

  • @7DDE.ADF - Mountain 16 Bit SCSI Host Adapter
  • @7DF0.ADF - SYSGEN PST100 Tape Adapter
  • @7DF1.ADF - SYSGEN PSH200 SCSI Host Adapter
  • @7E76.ADF - Overland Data 9 Track Tape Coupler Model XL/2

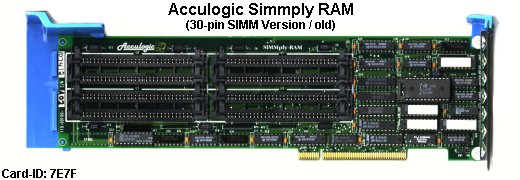

  • @7E7F.ADF - ACCULOGIC SIMMply RAM for the PS/2 (16-bit card)
  • C7E7F.ADF - Init file for @7E7F.ADF
    ACCULOGIC Simmply RAM /16

  • @7EC0.ADF - ACCULOGIC SIMMply RAM/32
  • C7EC0.ADF - Init file for @7EC0.ADF
    ACCULOGIC Simmply RAM/32

  • @7F00.ADF - COMPEX ANET16MC ARCnet Adapter Rev.D1
  • @7F01.ADF - Procom Tech. Inc. MC SCSI Enabler
    Procom SCSI Enabler

  • @7F4C.ADF - NCR 53C94 SCSI Controller
  • @7F4D.ADF - NCR 3421 SCSI Controller
  • @7F4E.ADF - NCR SCSI Host Adapter Board
  • @7F4F.ADF - NCR SCSI Host Adapter Board
  • @7F7E.ADF - ORCHID RamQuest EXTRA
  • @7F7F.ADF - DNA Network 'DNA-II' Adapter
  • @7F8F.ADF - EXABYTE SCSI Adapter
    sold as TALLGRASS SCSI-Adapter as well
  • @7F99.ADF - Digi MC/4i or MC/8i Multiport Serial
  • @7F9A.ADF - Digi RS-422 MC/4i or MC/8i Multiport Serial
  • @7F9B.ADF - Digi MC/16i Multiport Serial Card
  • @7F9C.ADF - Digi MC/Xem Host Adapter Card
    DigiChannel EM Adapter

  • @7F9D.ADF - Digi EPC/X Host / SyncPort MC Adapter Card
  • @7F9E.ADF - Digi MC IMAC Adapter Card

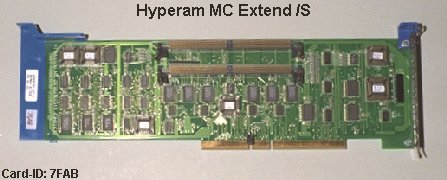

  • @7FAB.ADF - Hyperam MC EXTend S
  • C7FAB.ADF - Init file for @7FAB.ADF
    Hyperam MC EXTend S

  • @7FAE.ADF - XTEND Renaissance Expansion Board - CPU Upgr.
  • C7FAE.ADF - Init file for @7FAE.ADF

  • @7FBE.ADF - FTG PXL-480 HI-RES Lightpen Board
    FTG PXL-480 HI-RES Lightpen Board

  • @7FCE.ADF - Connect Tech Intellicon MC8
    a.k.a. Canmax CS-6060MCA
  • @7FD5.ADF - The NCI 4700 PCI/MC
  • @7FE9.ADF - Digi MCd/4i or MCd/8i Multiport Serial
  • @7FEA.ADF - Digi RS-422 MCd/4i or MCd/8i Multiport Serial
  • @7FEB.ADF - Digi MCd/16i Multiport Serial Card
  • @7FEC.ADF - CSM Inc. SCSI Host Adapter
  • @7FF7.ADF - STB RapidRAM 2/8 Memory Board
  • @7FF9.ADF - IOMEGA PC4 Host Adapter Board
  • @7FFA.ADF - Iomega PC4B/50 SCSI Host Adapter Board
    Iomega PC4B/50 SCSI Host Adapter
